Hydrovac Excavation in Kitchener, Ontario

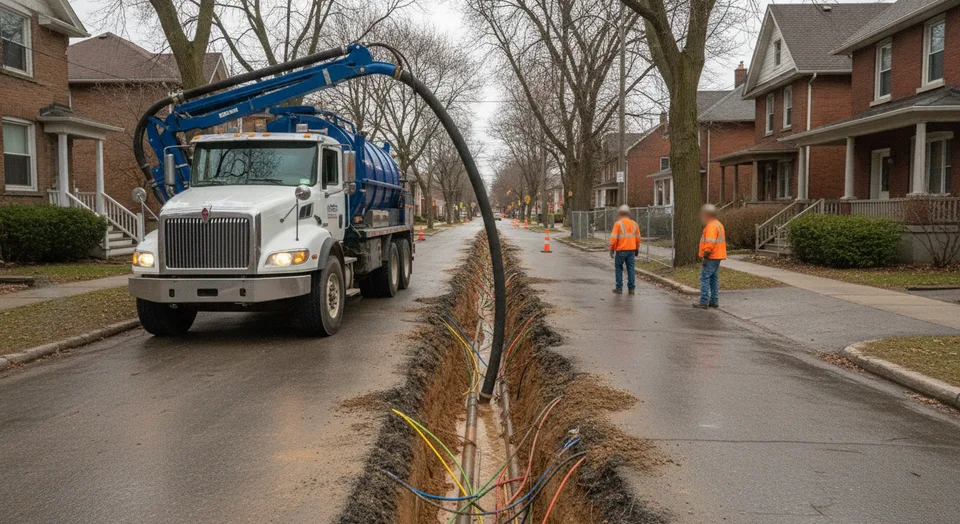

Kitchener is two different digging problems in one city. Downtown and through the older streets around Victoria Park, Mount Hope and Cherry Hill, the ground has been opened and closed for more than a century: abandoned gas services, clay sewer laterals that were never drawn, hydro ducts that run where the plan says they do not, and old foundations a metre off where anyone expects. A bucket in that ground is a gamble. South of the 401 the problem is the opposite. Doon South, Huron Park and the newer phases around them are full of freshly installed services sitting shallow in graded clay, often with the trench lines still visible, and the work there is volume: hundreds of fence posts, deck footings, pool enclosures and service connections that all need a hole near something that must not be hit. Hydrovac handles both. Pressurised water loosens the soil, a vacuum pulls it into the debris tank, and the service is exposed intact. The locate is requested first, the slurry leaves the site in the truck, and the quote says what is included before anyone shows up.

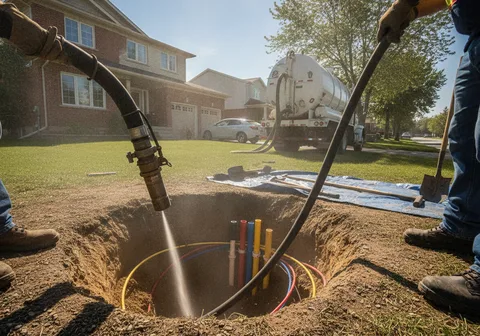

The locate comes first, and it is the law. Every hydrovac job in Kitchener starts with a locate request through Ontario One Call, which administers the Ontario Underground Infrastructure Notification System Act, 2012. The standard timeline is that each utility owner has five business days to complete the locate, and the excavator is expected to wait until every notified owner has responded, to check the paperwork against the paint on the ground, and not to dig on an expired locate. Requests are only to be made for digs planned within the next 30 calendar days. What this means for scheduling is simple: a hydrovac truck cannot usually be on site tomorrow for planned work, even though the truck itself is the safest way to dig. For a contractor sequencing a job, the locate request goes in the week before the posts, the footings or the tie-in. Hydrovac is also what the utility owners themselves commonly ask for when a locate says a service is present but the exact depth is unknown, because the alternative to exposing it is guessing at it.

Downtown Kitchener: a century of services nobody mapped. The core between the Iron Horse Trail and the Conestoga Parkway has been built, demolished and rebuilt repeatedly since the 1800s, and the record of what is buried there is incomplete in a way the newer parts of the city are not. A locate marks the services the owners know about. It does not mark the gas service that was cut and capped in 1970 and left in place, the private lateral from a building that no longer exists, the old streetcar-era duct bank, or the cistern under a Victoria Park back yard. In that ground hydrovac is not an upgrade on mechanical digging, it is the only sensible way to open a hole close to anything live. The water will expose an unmarked pipe without breaking it, where a bucket tooth or an auger would not. Anyone planning a footing, a service upgrade or a pole replacement in the older streets should budget for the possibility that the hole will find something, and a hydrovac quote for that area says so rather than pretending the plan is complete.

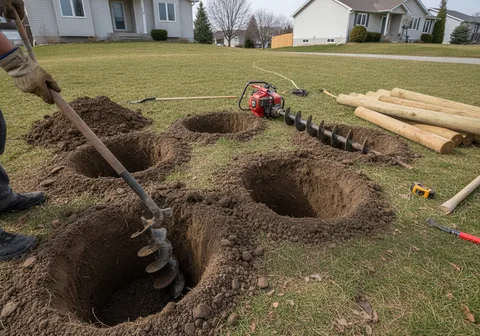

Doon South and Huron Park: shallow new services in clay. The subdivisions south of the 401 are the other half of the work. New hydro, gas, telecom and water services run shallow across hundreds of lots, the trench backfill is often softer than the native clay beside it, and the fence, deck and pool contractors who follow the builders are putting dozens of holes per street within arm's reach of all of it. The usual pattern is a day of post holes for a fence contractor along a rear lot line where the locate shows a joint-use trench, or exposing a gas service at the house wall before a deck ledger or an addition footing goes in. Graded clay holds water, so the slurry volume per hole is higher than in sand and the debris tank fills faster, which is one of the things that sets the quote. New-build lots also carry a lot-grading plan on file with the City; a hydrovac hole is backfilled and compacted to the finished grade, not left as a soft spot that settles into the swale.

Where the slurry goes, and where it cannot. A hydrovac truck leaves a site with a tank of wet soil, and in Waterloo Region what happens to it is governed by the Region of Waterloo's Sewer Use By-law 21-036. Storm sewers may receive only uncontaminated water or storm water, so tipping slurry into a catch basin or a manhole is a prohibited discharge, not a shortcut. The sanitary sewer has a total suspended solids limit of 350 mg/L, which hydrovac slurry exceeds by orders of magnitude, and the by-law's Temporary Discharge Permits are written for construction de-watering where no other disposal option exists, not for soil. The slurry goes to a receiving facility approved to take it, the disposal is a line item on the quote, and the number of loads is driven by how many holes are dug in what kind of ground. A quote that does not mention disposal is a quote that has left something out.

Working in the right-of-way, and near the river. Hydrovac on the boulevard, the sidewalk or the road is common in Kitchener, because that is where most services run. The City requires a work permit to occupy or close any part of a city road, sidewalk or boulevard, applied for at least five business days ahead, or ten business days downtown, with a certificate of insurance attached. Regional roads such as King Street, Victoria Street and Fairway Road are permitted through the Region of Waterloo instead. That lead time stacks with the locate timeline, so a boulevard job is planned a week or two out, not a day. Properties along the Grand River, Schneider Creek and the other watercourses may sit in a Grand River Conservation Authority regulated area under O. Reg. 41/24, where removing material from a site can need a permit; the GRCA's Map Your Property tool is the quick way to check an address before the truck is booked.
